Description

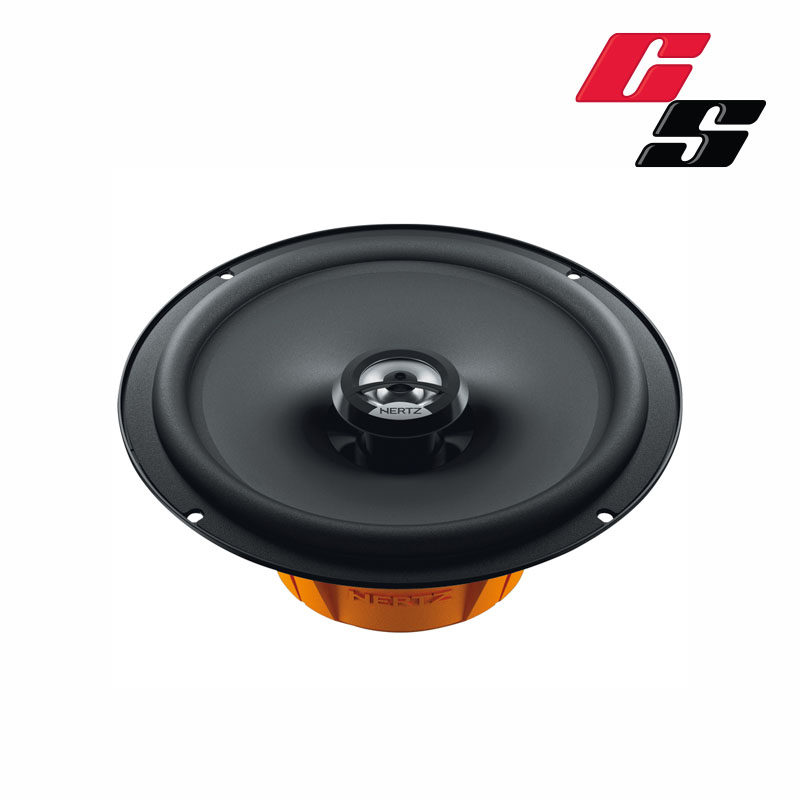

Hertz DCX 165.3
Dieci Series 6-1/2″ 2-Way Car Speakers
The Hertz DCX 165.3 meets all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
About the Hertz DCX 165.3
If you want to give the car audio a boost? Replace your old speakers with Hertz’s Dieci Series 6-1/2″ car speakers to elevate your sound to new heights. A built-in crossover guides midrange and low frequencies to a treated paper woofer with a special polyurethane surround, whereas high frequencies are guided to a PEI dome tweeter. Improved linearity and dependability have an outstanding dynamic range for modern enjoyment of old favorites.
Hertz DCX 165.3 Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 15mm Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | PEI | |
| Woofer Composition | Treated Paper (Water-Repellent | |
| Woofer Surround | Polyurethane | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 93 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 60 – 21k Hz | |
| Minimum RMS Wattage | — | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 120 | |
| Top-mount Depth (Inches) | 2 9/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 9/16 | |
| Mounting Height (Inches) | 0.242 | |
Features
PEI or also known as Poly-Ether-Imide is a polymer film that produces a wide soundstage and above all to enhance imaging.
Improve your drive with better sound!
Looking to add a little more bang to your vehicle sound system? Simply change up your old speakers for a new set of Hertz’s Dieci Series 5-1/4″ car speakers! Built-in crossover channels lower and midrange frequencies to a treated paper woofer with a special polyurethane surround and directs high frequencies to a PEI dome tweeter. Improved linearity and reliable performance give you an extraordinary powerful reach for the new pleasure of old favorites.
The Hertz view
Hertz understands that a great speaker should draw out the emotional energy of the music you cherish, as a result- partnered with their commitment to using deluxe components and boundary-pushing engineering; they produce premium quality. Besides, music requires no compromise. Incorporated music lovers, Hertz is obliged to optimizing your vehicle sound system for complete audio delight.
In conclusion, the Hertz Dieci Series is the perfect speaker for the on-the-go music lover!
Size Classification Note: Some manufacturers, including Hertz, call this size speaker a 6-1/2″. Because it requires a larger cutout than a standard 6-1/2″
Product highlights of Hertz DCX 165.3:
- 2-way car speakers (pair)
- 6-1/2″ treated paper woofer with polyurethane surround
- 5/8″ PEI dome tweeter
- handles up to 60 watts RMS (120 watts peak power)
- frequency range: 60-21,000 Hz
- sensitivity: 93 dB
- top-mount depth: 2-1/2″
- grilles not included
- warranty: 2 years
- MFR # DCX 165.3
What’s in the Hertz DCX 165.3 box:
Hertz DCX 165.3 owner’s manual
- Two 2-way Speakers
- Eight 3/4″ Screws
- 8 Speed clips
- Owner’s manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 20 Others)
Hertz DCX 165.3 Data Table
| Power Handling – Peak W | 120 |
| Power Handling – Continuous W | 60 |
| Impedance Ω | 4 |
| Frequency response Hz | 60 ÷ 21k |
| Sensitivity dB SPL | 93 |
| Woofer size mm (in.) | 165 (6.5) |
| Tweeter size mm (in.) | 15 (0.6) |
| Woofer Voice Coil Ø mm (in.) | 25 (1.0) |
| Woofer magnet | High-density flux ferri |
| Tweeter magnet | Neodymium |
| Woofer Cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
