Description

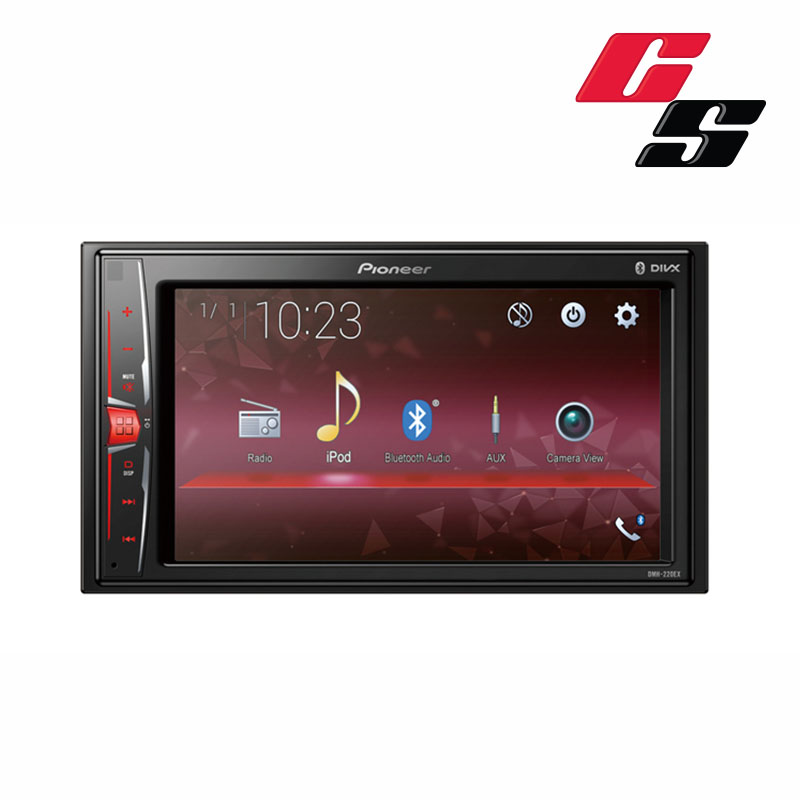

Pioneer DMH-220EX

Digital Multimedia Receiver

The DMH-220EX is a new entry-level in-dash multimedia A/V receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth^® for hands-free calling and audio streaming, audio/video playback from USB, safety features such as backup camera ready, and much more.

DMH-220EX USB Direct Control for iPhone

Pioneer’s DMH-220EX is ready to roll with direct connectivity to your iPhone* for music and video via USB. Song, artist, time, and album information are beautifully displayed on the touchscreen.

The system’s wired USB connection provides direct digital signal transfer from the device for clean, clear sound while providing 1.5 amp of current to keep your iPod/iPhone charged.

* Requires iPhone 5 or newer. Compatibility with unit and operations may vary depending on the iOS version

Android Music Support

Users of devices running Android OS version 4.0 or later can connect to the DMH-220EX and listen to music stored on the device without the need for an app. The process is made possible using Media Transfer Protocol (MTP), which allows the receiver to recognize the Android smartphone as a music storage device. Operate basic functions like FF, REW, Play, Pause, Random Play, and Repeat and view Metadata information such as track, artist, and album name.

Hands-Free Calling and Audio Streaming

Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth-enabled phone to the DMH-220EX without having to go through complicated settings. When a registered Bluetooth device is in proximity to the receiver, the auto connection function automatically pairs the two units.

From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search*, simple pairing, and control audio (AVRCP profile), Bluetooth® wireless technology has made life in the vehicle much more convenient.

The DMH-220EX with Bluetooth also includes superior call quality reception using Wideband Speech Handsfree Profile 1.6. Wideband Speech nearly doubles the bandwidth of frequencies of a normal Bluetooth call (when compared to calls without Wideband Speech)**.

Other features include the ability to browse music libraries on smartphones wirelessly.

*Search functions vary by phone.
**Call quality depends on wireless provider’s support of HFP 1.6.

Back-up Camera Ready

Back-up camera input enables you to add a reverse (rear-facing) camera that can assist with rear visibility, towing, or parking.

*Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Customize Your Colors

Select from among five colors (blue/red/amber/green/violet) for the display and 112 different key colors to match unit illumination to your vehicle’s interior lighting. Also choose from several background images to suit your mood.

What’s in the Box

• Digital media receiver w/ fixed 6.2″ touchscreen monitor (10A fuse inserted in chassis)
• Wiring harness
• 5′ USB extension cable
• Microphone w/ mounting-bracket (attached 13′ cable terminated by a right-angle 2.5mm connector)
• Two-sided tape
• 6 Pan-head ISO screws (M5 x 6mm)
• 6 Flat-head ISO screws (M5 x 6mm)
• Quick Start Guide
• Installation Manual
• Warranty Information

Caution: Read the operation manual as well as all instructions and cautions before use. Pay attention to the road, limit glances to the device, and do not use any feature if it cannot be operated both safely and legally in your location and environment. Distracted driving may result in serious injury, including death. Certain functions such as video playback and keyboard input are restricted through a parking brake interlock system.

DISPLAY

• Screen Size/Aspect Ratio6.2″/16:9
• ResolutionWVGA (800 x 480)
• TouchscreenClear Resistive
• LED Backlight
• Display Off Mode
• Color Customization5 Display Colors, 112-Key Colors
• Display Customization2-Background
• Dimmer Setting (ON/OFF)
• Brightness Control

BLUETOOTH®

• Built-in Bluetooth®
• Supported CodecsSBC/AAC

TUNER

• Presets18 FM, 6 AM
• Best Station Memory (BSM)
• Local Seek Tuning
• RDS

INTEGRATION

• Voice Control

DIGITAL MEDIA PLAYBACK

• MP3 Audio PlaybackUSB
• WMA Audio PlaybackUSB
• AAC Audio PlaybackUSB
• WAV Audio Playback (Hi-Res)USB
• MPEG-1 Video PlaybackUSB
• MPEG-2 Video PlaybackUSB
• MPEG-4 Video PlaybackUSB
• AVI/DivX Video PlaybackUSB
• JPEG Photo Slideshow ViewerUSB

AUDIO

• RCA Preouts3 (2V)
• Built-in AmplifierMOSFET 50 W x 4
• Customizable Graphic Equalizer13-Band
• D/A Converter24-Bit
• Time Alignment (CD-MC20 required)Manual
• Subwoofer Control
• Advanced Sound Retriever

EXPANDABILITY

• USBSingle, Rear (1.5 Amp
• AUX InputRear
• Wired Remote Input
• Composite Video Output
• USB Direct Control for iPhone®

GENERAL

• Detachable Face SecurityFixed
• Remote ControlOptional
• Multi-Language DisplayEnglish, Chinese (Simplified), French, Spanish, Portuguese
• Warranty (must be purchased from an Authorized Pioneer Dealer)1 Year
• 2006 CEA Compliant
