Description

Pioneer DEH-80PRS

CD Receiver

The DEH-80PRS CD receiver is one of the best on the market that provides good sound quality, active displays. However, if you want to achieve the highest level of sound quality, you must look beneath the surface for a receiver that is designed from the ground up for SQ. With the quality of its internal components and architecture, Pioneer’s DEH-80PRS CD receiver outperforms most receivers.

Components of High Quality

Pioneer begins with audiophile-grade components, such as a trio of Burr-Brown® 24-bit D/A converters, one for the lows, mids, and highs, as well as beefy, high-capacitance power supply capacitors that keep your sound clean and focused even when you push your system. Internal noise is reduced in a 4-layer circuit board design by shielding vulnerable components with copper foil.

The DEH-80PRS employs a 28-bit binary floating-point digital signal processor, allowing for extremely precise control of the receiver’s signal processing and tuning. What does this imply to you? Adjusting the time alignment and other acoustic parameters does not degrade the original signal; the sound remains accurate and natural.

Unprecedented Control Features

The DEH-80PRS has plenty of built-in power, and the output can be adjusted using a comprehensive 16-band EQ that allows you to set the left and right channels independently. However, in order for this receiver’s true genius to shine through, you’ll need to connect it to external amplifiers. The DEH-80PRS features a sophisticated 3-way active crossover network that allows you to independently amplify and adjust the lows, mids, and highs. This unrivaled level of control ensures the most accurate sound reproduction — ideal for creating your ultimate SQ dream system.

Product highlights:

General features:

• CD receiver with AM/FM tuner
• built-in MOSFET amplifier (14 watts RMS CEA-2006/50 peak x 4 channels)
• audiophile-grade components and internal architecture
• Pandora® Internet radio control with iPhone
• built-in Bluetooth for hands-free calling and audio streaming
• plays CDs, CD-Rs, and CD-RWs, including discs loaded with MP3, WMA, and AAC files
• detachable fold-face with 3-line full-dot LCD display, plus customizable display and key colors
• remote control

Audio features:

• 16-band equalizer with separate left and right channel control
• 3-way crossover network
• Auto-EQ and time alignment (Auto-EQ microphone included)
• Advanced Sound Retriever
• loudness
• high- and low-pass filters
• subwoofer level control

Expandability:

• built-in iPod control — no adapter necessary
• App Mode offers limited control of music apps through an iPhone connection

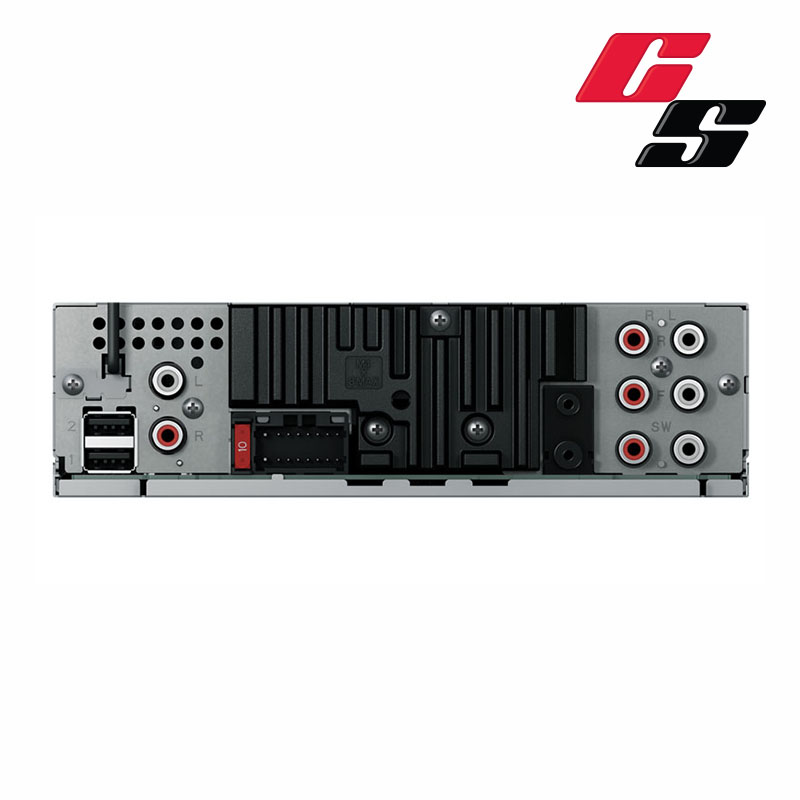

• inputs: two rear 1-amp USB inputs, front, and rear auxiliary inputs, SD card slot
• outputs: 6-channel preamp outputs (5-volt front, rear, sub — switchable to high, mid, low)

Other info:

• compatible with most factory steering wheel audio controls (adapter required)
• CEA-2006 compliant
• warranty: 1 year
• MFR # DEH-80PRS

What’s in the Box:

• AM/FM CD receiver (with 10-amp ATM mini fuse inserted into chassis)
• Face (attached)
• Sleeve (installed)
• Trim ring (installed)
• Wiring harness
• Low-level-to-high-level harness
• Wireless remote control (QXE1044)
• CR2025 Lithium battery (installed)
• 5′ USB extension cable (with a male USB Type-A connector on one end and a female USB type-A connector on other ends)
• Auto-EQ microphone (with attached 6.5′ cord terminated by a male 3.5mm connector)
• External microphone (with attached 13′ cable terminated by a right-angle male 2.5mm connector)
• Visor-bracket
• Two-sided tape
• 5 Self-adhesive cable clamps
• 2 Extraction keys
• 4 Pan head ISO-mount screws (M5 x 8mm)
• 4 Flat-head ISO-mount screws (M5 x 9mm)
• Face fixing screws
• 2 Face fixing clips
• Operation’s Manual CD-ROM
• Quick Start Guide (En/Fr/Sp)
• Installation Manual (En/Fr/Sp)
• Information to User sheet
• Limited Warranty Information (USA/Canada)
• Operating Environment note for CD-ROM
