Description

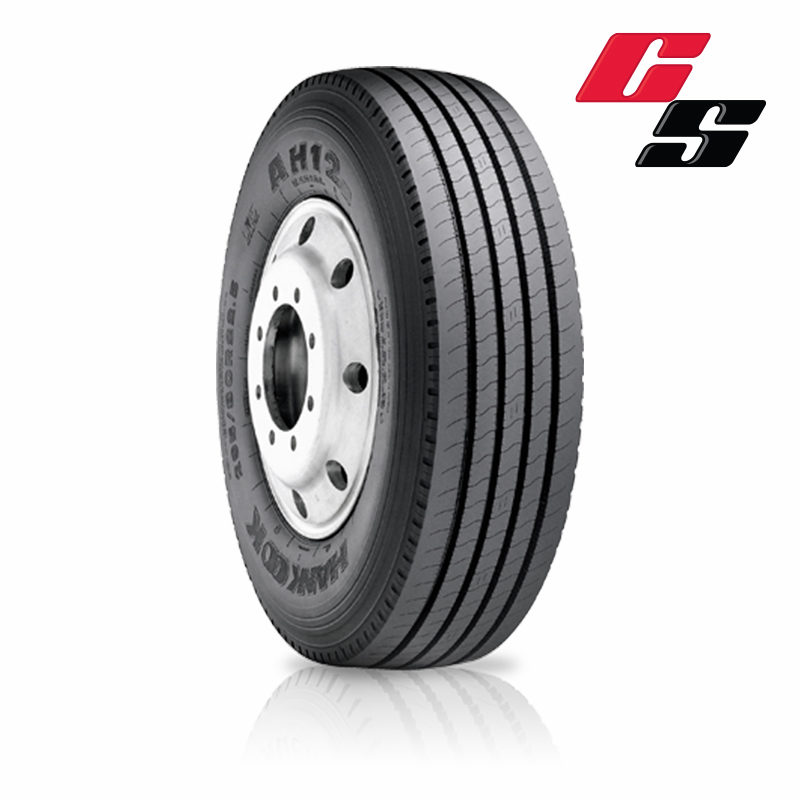

AH12
Features
Tire Pattern
-
Excellent handling performance Four straight grooves with innovative sipe design provide excellent steering and maximum grip performance.
-
Even wear and no stone retention Evolutionary tread design with optimal waved sipes renders tire to wear evenly which provides longer tire life. The optimized design prevents stone drilling and retention.
-
Consistent all-weather performance Numerous sipes along the edge of the tread surface ensure excellent traction in all weather conditions and prevent heat build-up which prevents irregular wear.
Tire Structure
Belt structure Minimized motion of belts for reduced heat generation.
CarcassOptimized carcass structure for better ride and handling.
Improved beadOptimized bead profile for superior re-treadability.
Specifications
|
Size
|
LI/SS
|
TT/TL
|
PR
|
Measuring Rim
|
Overall Diameter
(mm) (Inch) |
Section Width
(mm) (Inch) |
Tread Width
(mm) (Inch) |
Tread Depth
(mm) (Inch/32″) |
Static Loaded Radius
(mm) (Inch) |
Tire Labeling Class
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Fuel Efficiency
|
Wet Grip
|
Noise Level
|
||||||||||
| 10R22.5 | – | TL | 14 | 7.5 | 1020 40 |
258 10 |
178 7 |
12.6 16 |
472 19 |
– | – | – |
| 11R22.5 | – | TL | 14 | 8.25 | 1053 41 |
282 11 |
210 8 |
15.0 19 |
487 19 |
– | – | – |
| 11R22.5 | 148/145M | TL | 16 | 8.25 | 1053 41 |
282 11 |
210 8 |
15.0 19 |
487 19 |
– | – | – |
| 11R24.5 | – | TL | 14 | 8.25 | 1104 43 |
282 11 |
220 9 |
14.5 18 |
513 20 |
– | – | – |
| 11R24.5 | – | TL | 16 | 8.25 | 1104 43 |
282 11 |
220 9 |
14.5 18 |
513 20 |
– | – | – |
| 12R22.5 | 152/148L | TL | 16 | 9.0 | 1085 43 |
298 12 |
204 8 |
15.0 19 |
501 20 |
– | – | – |
| 255/70R22.5 | 140/137M | TL | 16 | 7.5 | 929 37 |
250 10 |
198 8 |
13.1 17 |
435 17 |
– | – | – |
| 275/70R22.5 | 148/145M | TL | 16 | 8.25 | 962 38 |
276 11 |
212 8 |
15.0 19 |
450 18 |
– | – | – |
| 285/75R24.5 | – | TL | 14 | 8.25 | 1052 41 |
288 11 |
220 9 |
14.5 18 |
491 19 |
– | – | – |
| 295/75R22.5 | – | TL | 14 | 9.0 | 1021 40 |
294 12 |
230 9 |
14.5 18 |
475 19 |
– | – | – |
